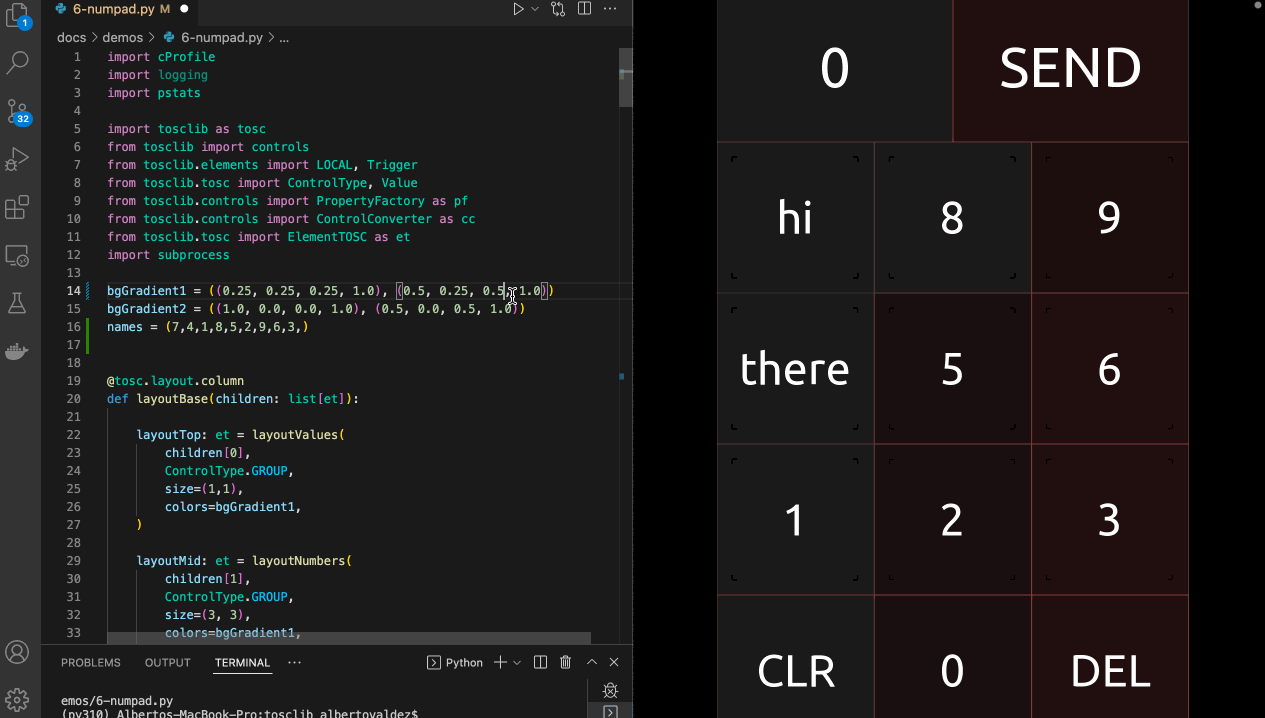

Numpad¶
An integer numpad built entirely from Python: nested layouts, a Lua script carried as a property, and LOCAL messages wiring twelve keys to one readout.
A reconstruction of the numpad module by Felix.
Each key is a BUTTON with a non-interactive LABEL on top, so the touch reaches
the button underneath. Pressing a key sends its name to the readout's text
value over a LocalMessage; the readout's script
appends the digit and clamps the running total to its max property.
"""An integer numpad, built entirely from Python.
A reconstruction of the numpad module by Felix
(<https://github.com/F-l-i-x/TouchOSC/tree/main/modules/numpad>), and the demo
that most exercises the library: nested layouts, per-cell controls, a Lua script
carried as a property, and LOCAL messages wiring every key to one readout.
Each key is a BUTTON with a LABEL on top. Pressing a key sends its caption to
the readout's `text` value over a LOCAL message, and the readout's script
decides what it means: a digit is appended, `DEL` drops the last one, `CLR`
starts over. Those twelve keys are wired identically, so the behaviour lives in
one place rather than in the messages.
The caption is sent with a `#` in front of it, because it arrives on the very
value the readout displays. TouchOSC reports a value only when it changes, so a
bare `7` sent while the readout already shows `7` would be no change at all and
the key would silently do nothing.
`SEND` is the exception. It touches the readout, and the readout carries an OSC
binding that fires on touch and sends the total to `/numpad/value` -- because an
OSC argument reads the control it sits on, and only the readout knows the total.
The whole layout is described inside out with the combinators in `py2tosc.ui`,
so nothing is sized until `resolve` runs at the end. Compare `from_json.py`,
which uses the eager `py2tosc.layout` functions instead.
python tests/demos/numpad.py
"""
import argparse
from collections.abc import Sequence
from pathlib import Path
import py2tosc
from py2tosc import Control, LocalMessage, Value, layout, ui
GRADIENT = ("#404040", "#804040")
KEYS = ("7", "4", "1", "8", "5", "2", "9", "6", "3")
READOUT_SCRIPT = """
-- The running total, held as text so digits can be appended to it. Empty
-- means nothing has been typed yet, which shows as 0.
self.sum = ""
self.values.text = "0"
-- A keypress arrives on the same value the readout displays, so it is marked
-- with a prefix a total can never start with. Without it, pressing 7 while the
-- readout already shows 7 would write the value that is there, and TouchOSC
-- reports a value only when it changes -- so the key would do nothing.
local PRESS = "#"
function onValueChanged(key, value)
if key ~= "text" then
return
end
local incoming = self.values.text
if string.sub(incoming, 1, 1) ~= PRESS then
return
end
-- Each key names itself, so the key decides what it means.
local pressed = string.sub(incoming, 2)
if pressed == "CLR" then
self.sum = ""
elseif pressed == "DEL" then
self.sum = string.sub(self.sum, 1, -2)
elseif not (self.sum == "" and pressed == "0") then
self.sum = self.sum..pressed
end
if self.sum ~= "" and tonumber(self.sum) > tonumber(self.max) then
self.sum = self.max
end
self.values.text = self.sum ~= "" and self.sum or "0"
end
"""
def key(
caption: str,
color: object,
*,
name: str = "",
inset: float = 0.0,
messages: Sequence[LocalMessage] = (),
) -> Control:
"""A cell holding a button with its caption laid over it.
Args:
caption: The text the label shows, which is also the button's name.
color: The colour for both the button and the caption.
name: The name of the cell itself. Defaults to the caption.
inset: Fraction of the cell to inset the caption by, for padding. The
button underneath fills the cell either way.
messages: Bindings to attach to the button.
Returns:
The cell, unsized until the layout is resolved.
"""
button = py2tosc.button(
name=caption, color=color, outline=False, messages=list(messages)
)
return ui.labelled(button, caption, inset=inset, name=name or caption, color=color)
#: Marks a keypress, so it cannot be mistaken for a total the readout is
#: already showing. See READOUT_SCRIPT.
PRESS = "#"
def sends_key_to(readout: Control, caption: str) -> LocalMessage:
"""A binding telling the readout which key was pressed.
The caption is sent as a marked constant rather than as the control's
`name`, because it lands on the value the readout displays: sending a bare
`7` while the readout shows `7` changes nothing, and TouchOSC reports a
value only when it changes, so the key would silently do nothing.
"""
return ui.connect(readout, source=ui.const(PRESS + caption), to="text", on="RISE")
def build() -> py2tosc.Document:
"""Assemble the numpad."""
top, middle, bottom = layout.gradient(*GRADIENT, 3)
value_shade, send_shade = layout.gradient(*GRADIENT, 2)
clear_shade, zero_shade, del_shade = layout.gradient(*GRADIENT, 3)
readout = py2tosc.label(
name="valueLabel",
color=value_shade,
background=False,
text_size=60,
values=[Value("text", default="0"), Value("touch", default=False)],
)
readout.set("sum", "")
readout.set("max", "127")
readout.script = READOUT_SCRIPT
# SEND cannot send the total itself: an OSC argument reads the control it
# sits on, and the readout is the only control holding the total. So the
# binding lives here, and SEND fires it by touching the readout.
readout.messages.append(
ui.osc(
"/numpad/value",
args=[ui.value("text", conversion="STRING")],
var="touch",
on="RISE",
receive=False,
)
)
# -- readout and send, across the top
values = ui.row(
ui.stack(
py2tosc.button(name="valueButton", color=value_shade),
readout,
name="value",
color=value_shade,
),
key(
"SEND",
send_shade,
name="send",
messages=[ui.connect(readout, to="touch", on="ANY")],
),
name="values",
color=top,
)
# -- the digits, in a 3x3 grid
numbers = ui.tiles(
*(
key(
caption,
shade,
name=f"key{caption}",
inset=0.1,
messages=[sends_key_to(readout, caption)],
)
for caption, shade in zip(KEYS, layout.gradient(*GRADIENT, len(KEYS)))
),
columns=3,
name="numbers",
color=middle,
)
# -- clear, zero and delete along the bottom. These send their names like
# every other key; the readout's script is what gives CLR and DEL meaning.
clear = ui.row(
key("CLR", clear_shade, name="clear", messages=[sends_key_to(readout, "CLR")]),
key("0", zero_shade, name="zero", messages=[sends_key_to(readout, "0")]),
key("DEL", del_shade, name="del", messages=[sends_key_to(readout, "DEL")]),
name="clear",
color=bottom,
)
doc = py2tosc.Document(
root=ui.column(
values,
numbers,
clear,
sizes=(1, 3, 1),
frame=(0, 0, 500, 800),
name="Numpad",
)
)
return doc.resolve()
def main(output_path: Path) -> None:
doc = build()
for issue in doc.validate():
print(f" {issue}")
output_path.parent.mkdir(parents=True, exist_ok=True)
doc.save(output_path)
print(f"{len(doc.find_all())} controls -> {output_path}")
def parse_args() -> argparse.Namespace:
"""Read the command line, so a missing path is a message and not a crash."""
parser = argparse.ArgumentParser(
description=__doc__.split("\n\n")[0],
formatter_class=argparse.RawDescriptionHelpFormatter,
)
parser.add_argument(
"-o",
"--output",
type=Path,
default=Path("build") / f"{Path(__file__).stem}.tosc",
help="where to write the layout (default: %(default)s)",
)
return parser.parse_args()
if __name__ == "__main__":
args = parse_args()
main(args.output)
The demo runs validate before saving, and the layout it
produces comes back clean.
